Modular Construction Wall Specifications
A single, reusable modular wall system designed for solid panel construction barricade applications. This versatile solution is engineered for indoor and outdoor use, providing structurally sound wall barricades and safe pedestrian zone barriers.

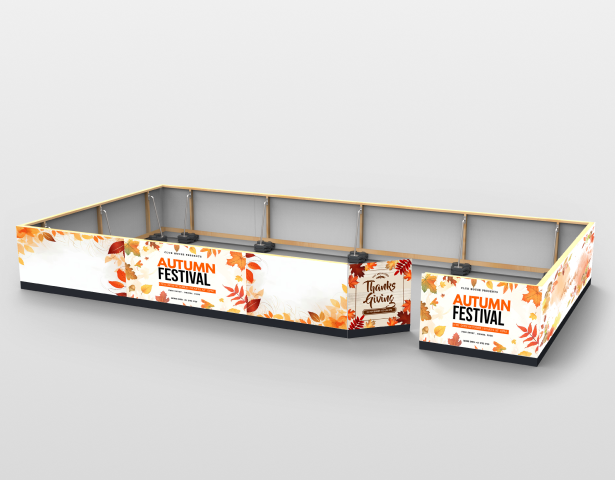

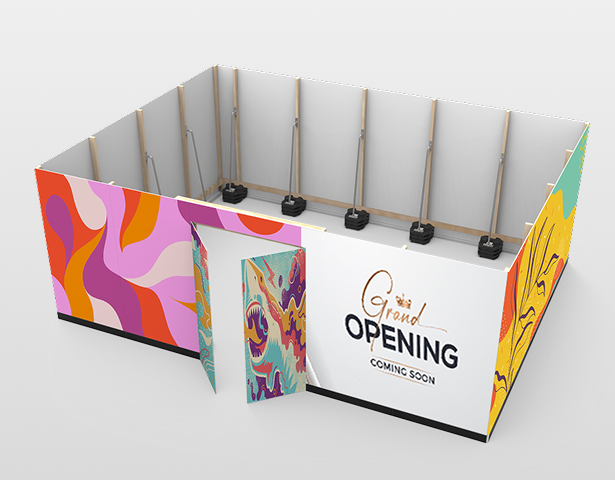

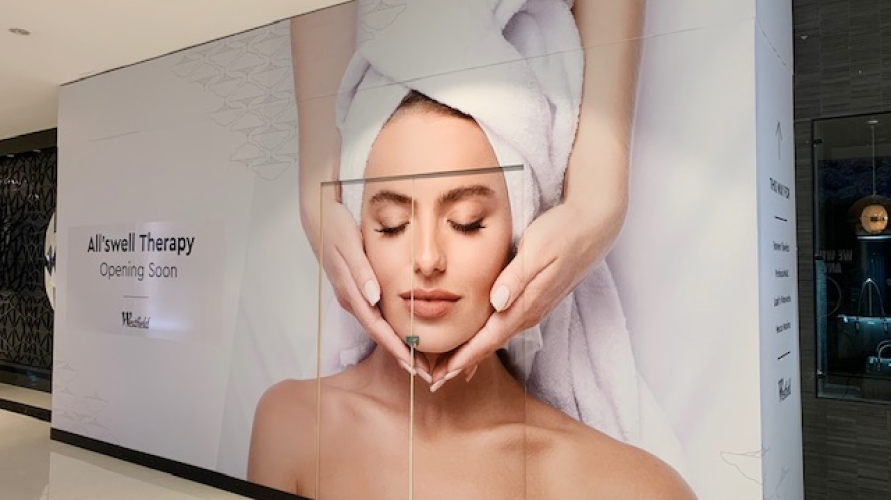

More Than A Barricade, A Branding Opportunity
Enhance construction wall barricades with fully customizable graphic options tailored to your needs.
Custom Graphics & Printing
Full-Color Printing
High-resolution graphics for crisp, vibrant visuals
UV & Fade-Resistant Inks
Ensure long-lasting durability in indoor and outdoor settings
Logo & Messaging Personalization
Company Logos & Slogans
Reinforce brand identity and promote your space
Directional & Informational Messaging
Share important information while in construction

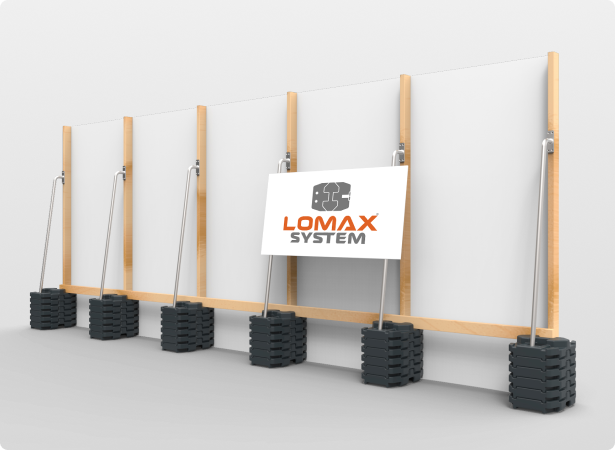

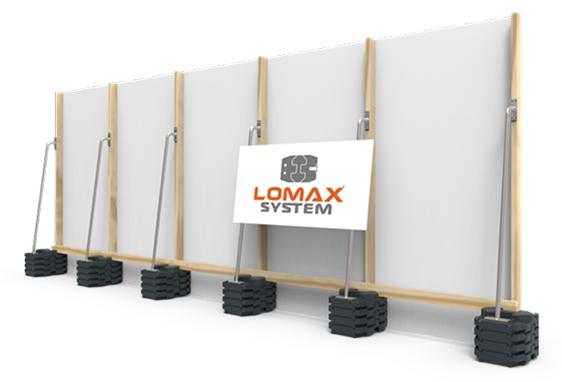

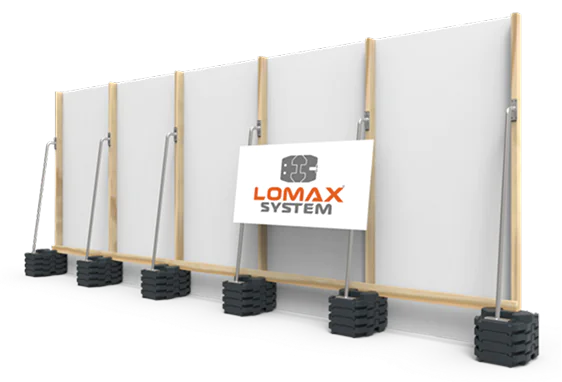

Unlimited Configuration
Designed, Tested and Structurally Engineered
Narrow Footprint
Only 18.1 in (46 cm) or 36.2 in (92 cm) deep, depending on configuration.
Completely Free-Standing
Indoor solutions free-stand up to 26 ft 3 in (8 m) high.
Safe and Secure
Counterweights cannot be detached while wall panels are standing.
Supports Cross Beams
Keeps modular walls from moving or snaking post-install.

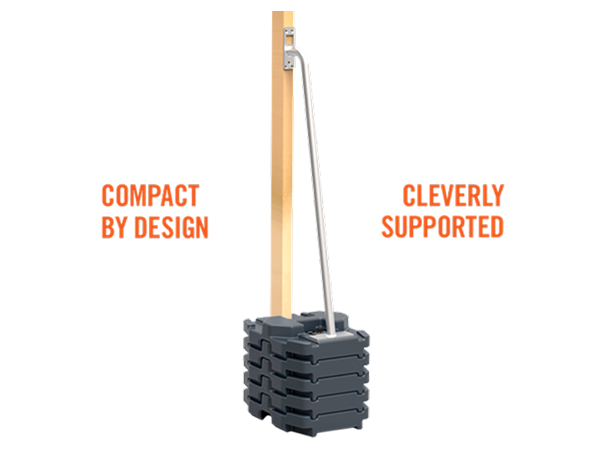

Triangulating Support Post
A steel post rises from the counterweights for added stability.
Multiple Panel Thicknesses
Fits 0.47 in (12 mm) raw MDF, 0.63 in (16 mm) white board and more.
Stability by Design
Upright timber sits on its strong axis for stability and greater heights.

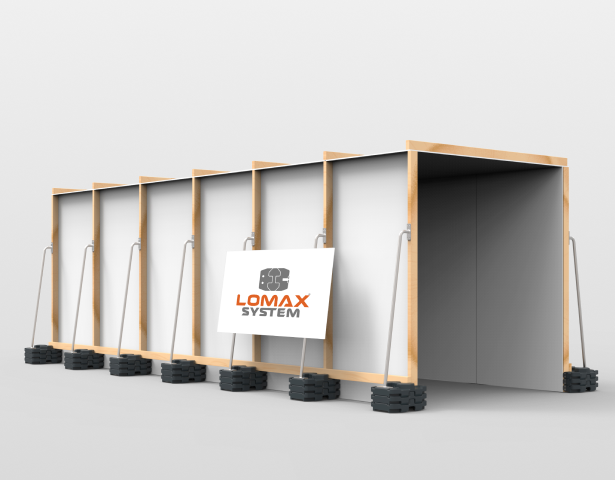

Unlimited Configuration
Modular panels adapt to any layout, perimeter or height.
Key Benefits
Structurally Engineered and Certified System
Extensively tested to exceed AS4687-2022 hoarding standard by multiple structural engineers

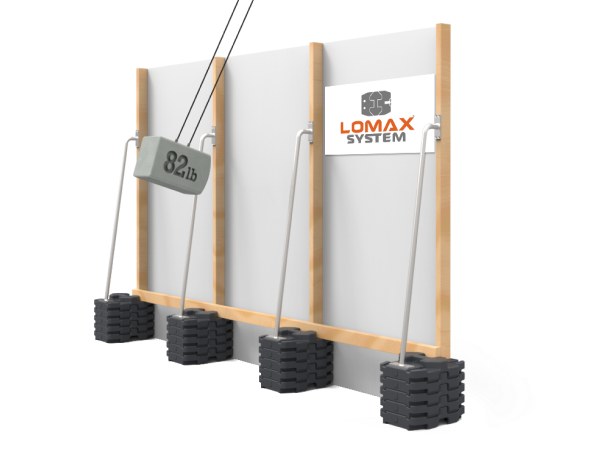

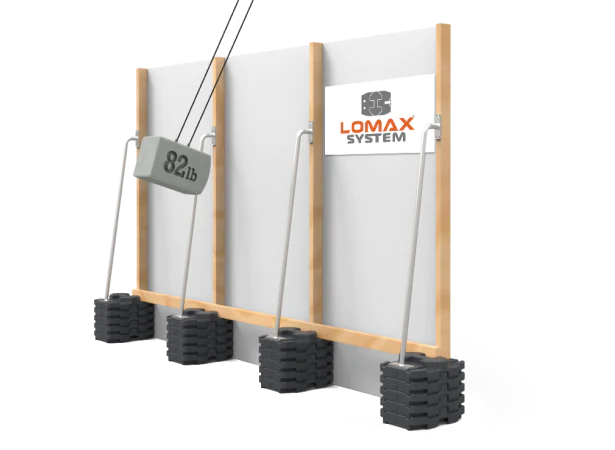

Impact tested from both front and rear of hoarding
Numerous configurations tested – Indoors and outdoors

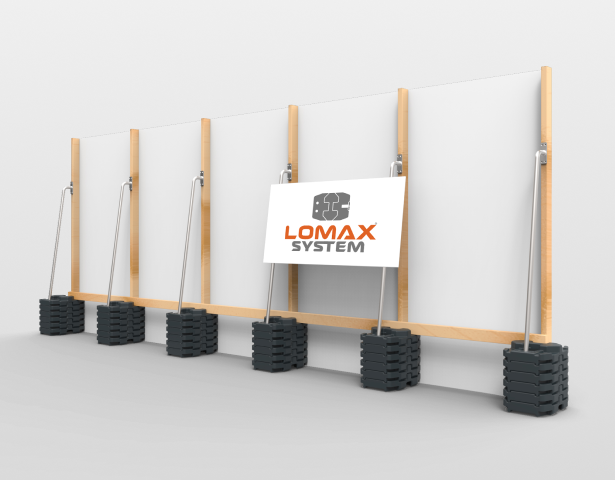

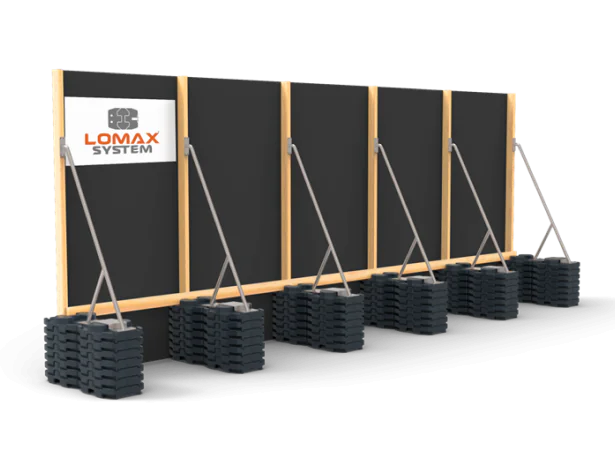

Completely Freestanding System
Engineered to free stand up to 26ft 3in (8m) H indoors

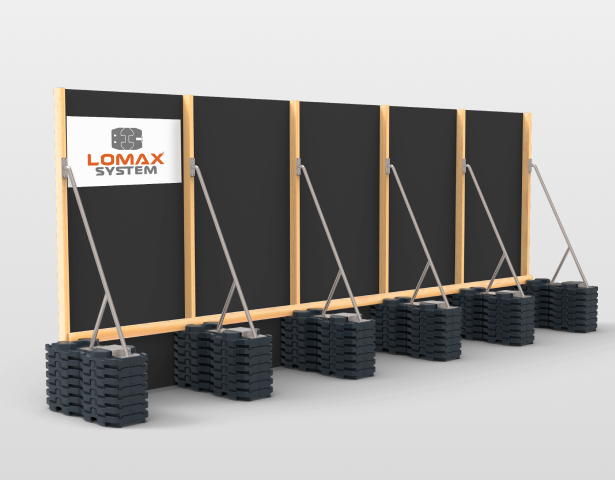

Engineered to free stand up to 13ft 1in (4m) H outdoors
No bracing or ground fixings required
Narrow Footprint System
Narrowest freestanding modular barricade solution available
Counterweights are only 18.1in (46cm) deep
Maximize your working space behind the hoarding

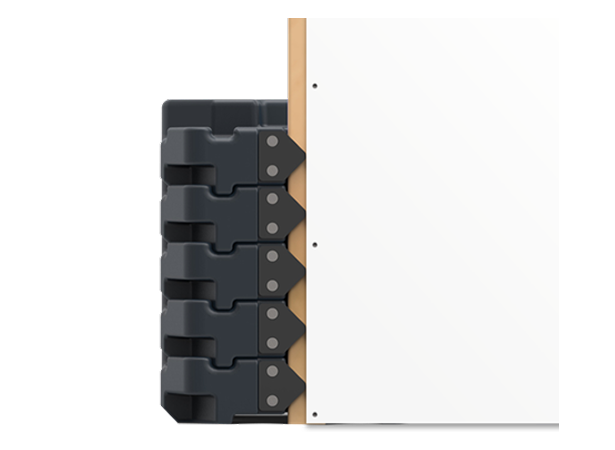

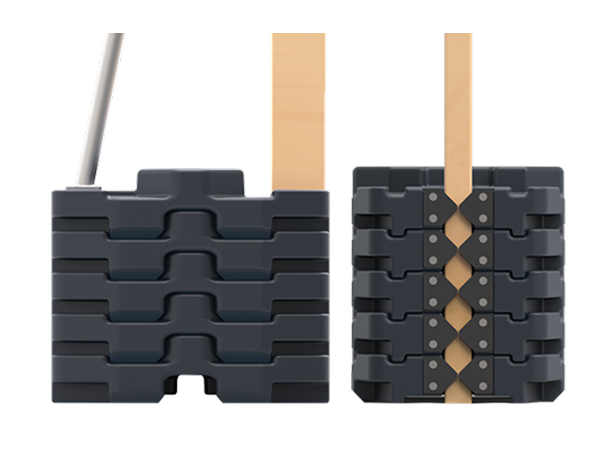

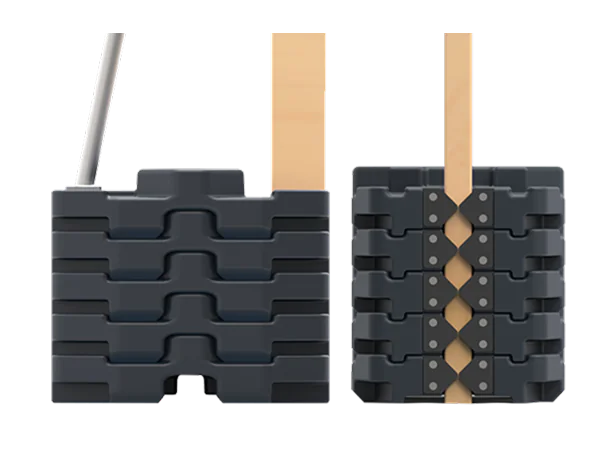

Secure Counterweights by Design
Impossible to remove counterweights whist barricade wall panels attached
Patented metal plates designed and integrated into counterweight
Ultimate safety by design – No need for additional anti-tamper locking tools

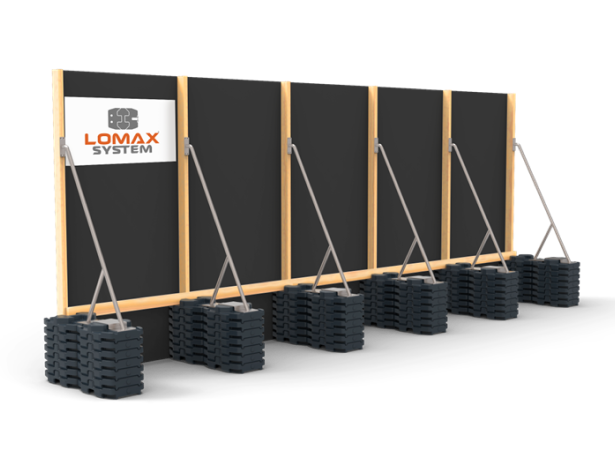

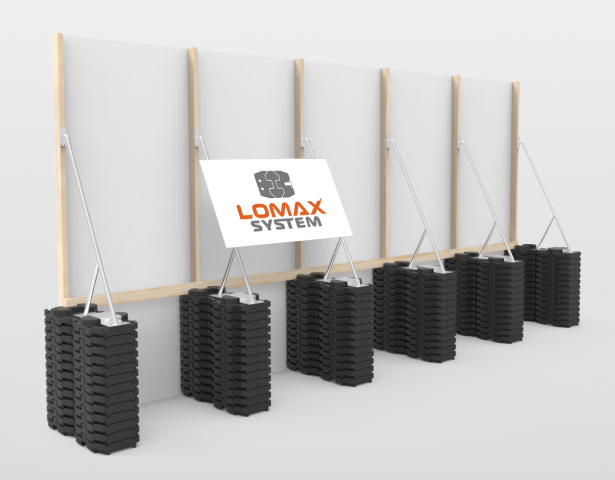

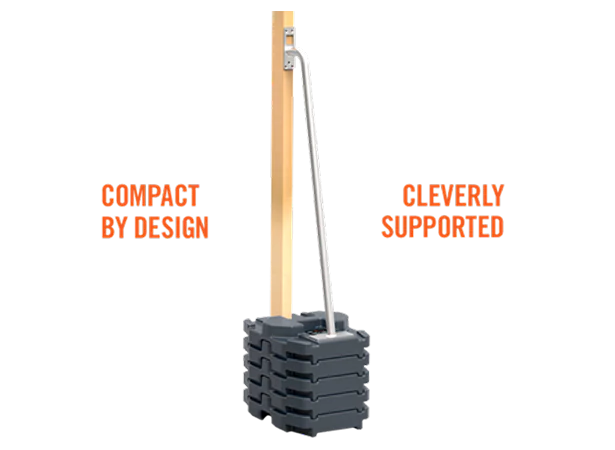

Triangulating Support Post
Steel post extends up from top of weights for maximum support
Clever design triangulates and strengthens the total system
Support post inserts into counterweights for optimum strength
Multiple indoor and outdoor configurations possible
Modular temporary wall system to reuse again and again
Simple and intuitive build process
Structural Engineered for stability and safety

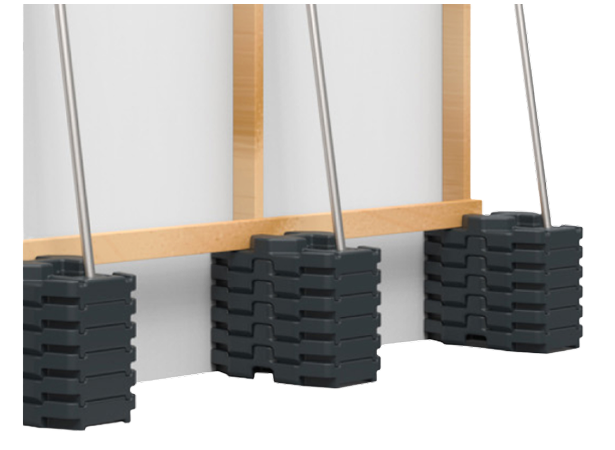

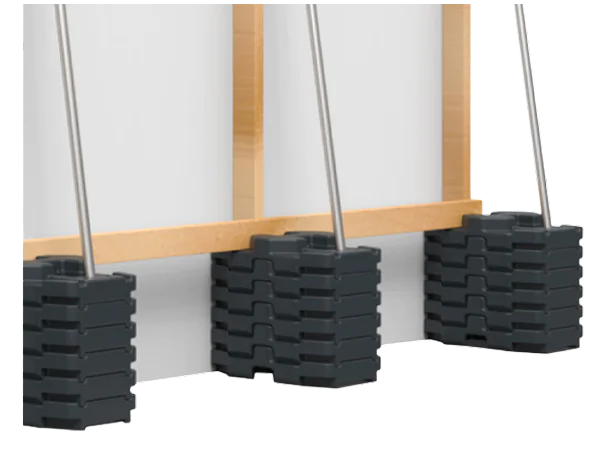

‘Stay Straight’ Crossbeam
Integrated cross-beam to keep hoarding straight long after installation
Purposefully designed feature to stop any lateral movement
Prevents that unwelcome ‘post-build movement or snaking’
Essential Components

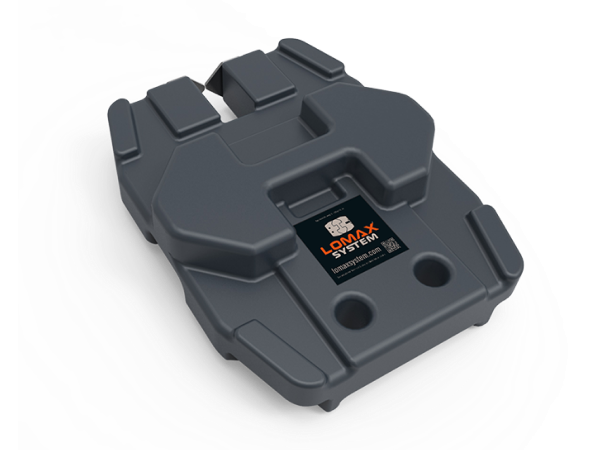

Lomax Full Sized Counterweight
Unique rectangular recess designed to receive either a vertical timber stud or our fencing support post
Integrated metal plates to retain either the timber stud or the fencing support post
1.26” (32mm) OD holes to receive hoarding support posts or fencing panels
Horizontal track to receive hoarding crossbeam support timbers
Easy carry handles
Interlocking shape for secure stacking
HxWxD: 4.72” (120mm) x 13.78” (350mm) x 18.11” (460mm)
Weight: 39.7 lbs. (18Kg)

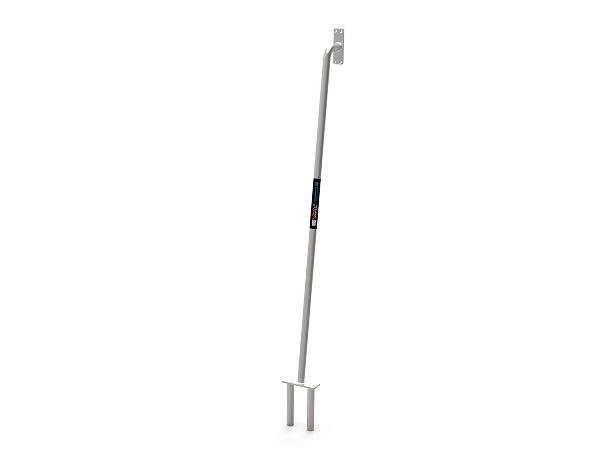

Lomax Support Posts – Large and Small
2 x 1.26 in. (32mm) OD guide-prongs to slide into full-sized counterweight
Galvanized steel construction for strength and durability
Easy to stack / store / transport
Height: 68.9 in. (1750mm) (Large) or 43.3 in. (1100mm) (Small)
Weight: 11 lbs. (5Kg)

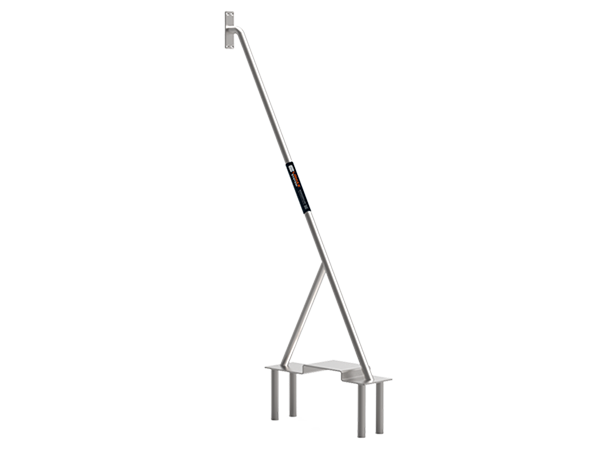

Lomax Double Support Posts
4 x 1.26 in. (32mm) OD guide-prongs to slide into double stacked full-sized counterweights
Galvanized steel construction for strength and durability
Easy to stack / store / transport
Height: 68.9 in. (1750mm)
Weight: 19.8 lbs. (9Kg)
